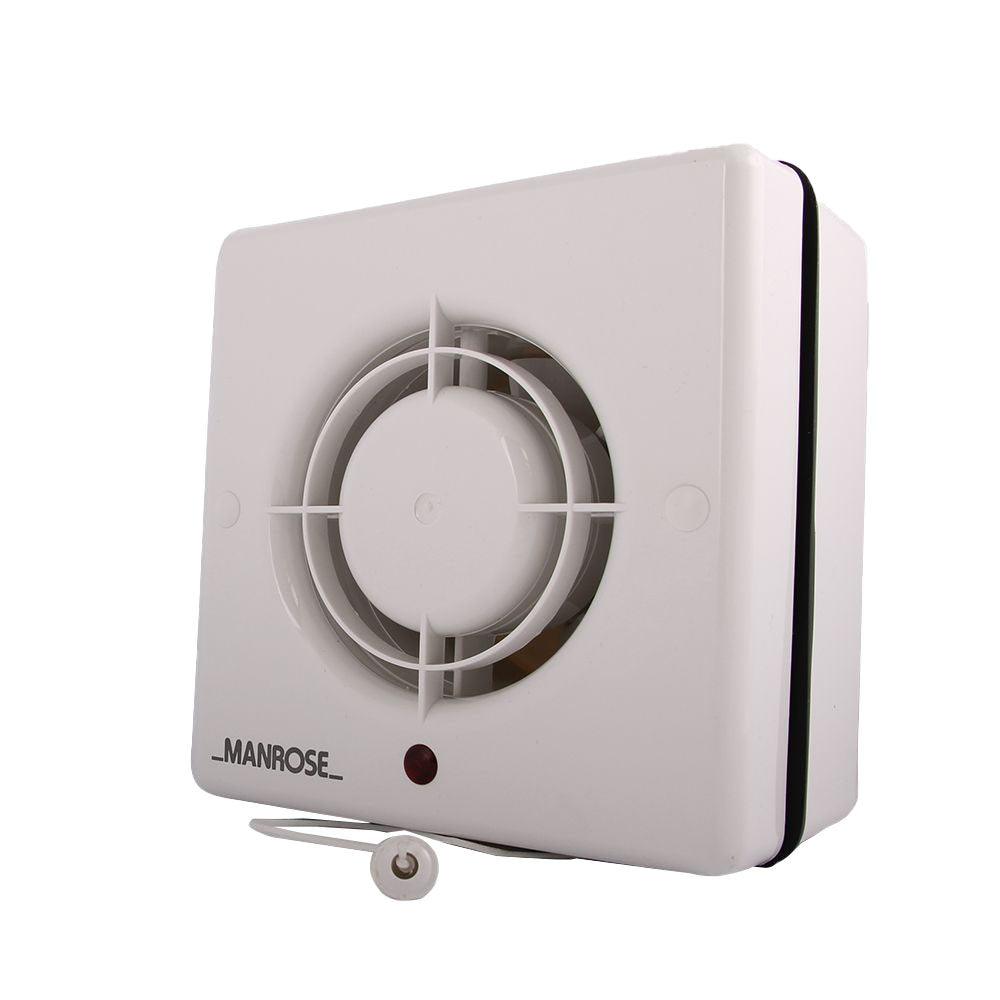

Manrose WF100H
Manrose 4 Inch Window Bathroom Extractor Fan with Humidistat & Timer
Specification:
Air Extraction m3/hr : 85m3/hr
Air Extraction L/s : 23 L/s
Noise : 41dB(A)
Watts : 14W
Dimensions:
163mm x 163mm
Depth: 30mm (overall 90mm)
- WF100 series window extractor fans are designed for window mounting through a standard 115 - 155mm diameter hole in 4mm - 10mm thick glass.
- Humidity control is adjustable between 40% RH and 95%
- The Manrose WF100H extractor fan is designed to continue running after the fan has been switched off for a period of approx 20 minutes.
- The integral timer has been pre-set for approx 20 minutes but can be adjusted on install to between 1 and 20 minutes.
Manrose WF100H Extractor Fan Range Overview
The Manrose range of 100mm (4") Bathroom/ Toilet Fans incorporates the latest technology and design and offers the most comprehensive range with the widest choice of options and variations.
Attractively styled in high gloss ABS thermoplastics for modern appearance and ease of cleaning, designed for easy installation and can be wall or ceiling mounted.
There are several options available; Standard model for remote switching, integral Pullcord units, and Timer models which incorporate an electronic time delay switch. Humidistat Control models are also available which are designed to switch on the fan as the humidity rises in the bathroom and off as it drops.
Construction
These fans are moulded in impact resistant high gloss ABS thermoplastics for strength, durability and finish.
Electrical
220-240V ~ A.C. 50Hz Single phase consuming 20 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor.
Motor
Single phase induction motor with pre-oiled bearings fitted for a long maintenance free life and protected by a thermal fuse.
Performance
The extract rate of all models is 85m?hr, 23 litres per second.
Additional Data
Maximum pressure: 20 p.a. Fan speed: 2400 r.p.m.
Sound volume: 41.0 dB(A) Maximum operating temperature 40? C.
Search Criteria
Group : Extractor Fans / 4 Inch Extractor Fans / Bathroom Extractor Fans
Sub-Group : Four Inch Extractor Fans / 4 Inch Bathroom Fans / 4" Bathroom Extractor Fans
Description : Manrose 4 inch Extractor Fan / Manrose Bathroom Fan / four inch Bathroom extractor fan / Extractor Fan with Humidistat and Timer/ 4 inch window fan
Code : Manrose WF100H
Minimum 3 Year Warranty on All Fans
