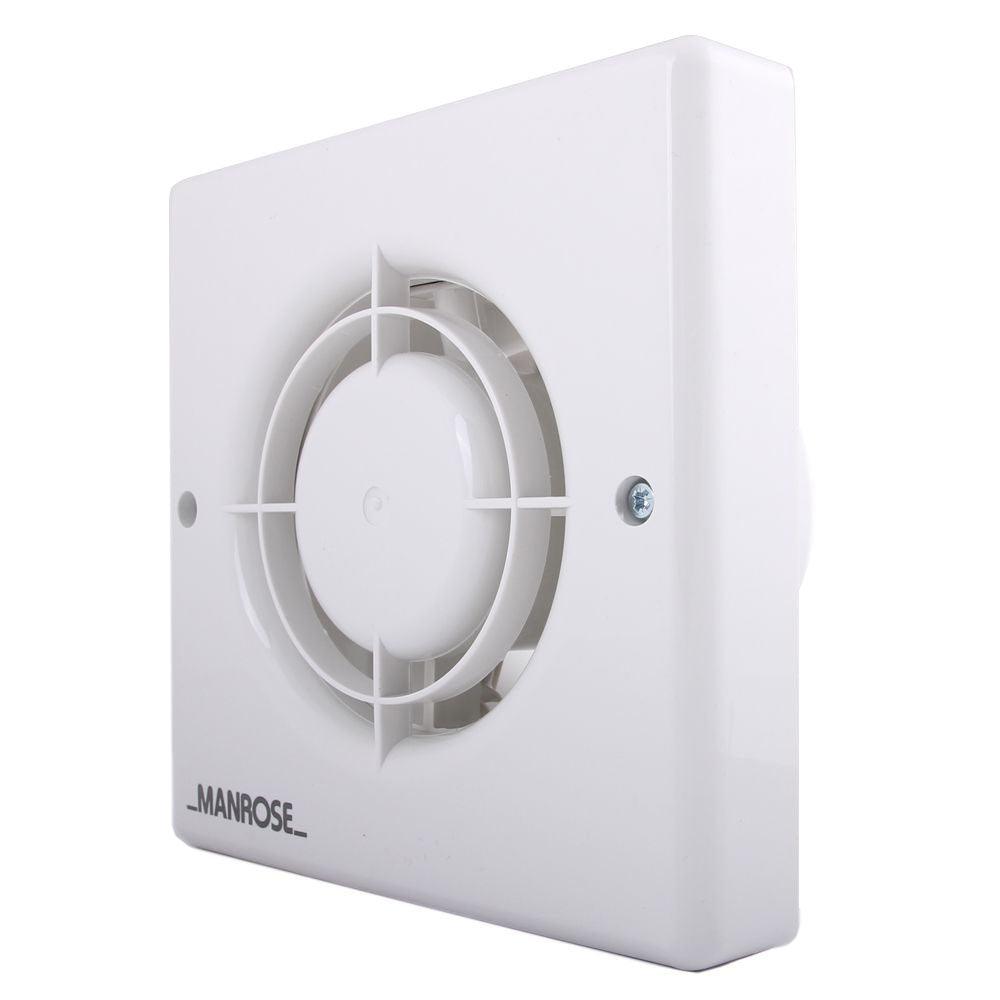

Manrose XF100T
Manrose 4 Inch Bathroom Extractor Fan with Timer
Specification:
Air Extraction m3/hr : 85m3/hr
Air Extraction L/s : 23 L/s
Noise : 41dB(A)
Watts : 14W
Manrose XF100 Extractor Fan Range Overview
The Manrose range of 100mm (4") Bathroom/ Toilet Fans incorporates the latest technology and design and offers the most comprehensive range with the widest choice of options and variations.
Attractively styled in high gloss ABS thermoplastics for modern appearance and ease of cleaning, designed for easy installation and can be wall or ceiling mounted.
There are several options available; Standard model for remote switching, integral Pullcord units, and Timer models which incorporate an electronic time delay switch. Humidistat Control models are also available which are designed to switch on the fan as the humidity rises in the bathroom and off as it drops. The Passive Infra-Red model is sensitive to movement and will switch on the fan when someone enters a room and switch it off when the room is vacated.
Construction
These fans are moulded in impact resistant high gloss ABS thermoplastics for strength, durability and finish.
Electrical
220-240V ~ A.C. 50Hz Single phase consuming 20 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor.
Motor
Single phase induction motor with pre-oiled bearings fitted for a long maintenance free life and protected by a thermal fuse.
Installation
XF100 Series designed to be mounted on walls or ceilings (Pullcord models wall mounting only) through 100mm (4") diameter flexible or rigid pipes. Also suitable for use with the Manrose low profile flat channel ducting systems.
Performance
The extract rate of all models is 85m?hr, 23 litres per second.
Packaging
XF100 Series in outers of 10 measuring 370mm x 200mm x 560mm and weighs 7 kgs.
Additional Data
Maximum pressure: 20 p.a. Fan speed: 2400 r.p.m.
Sound volume: 41.0 dB(A) Maximum operating temperature 40? C.
Minimum 3 Year Warranty on All Fans
