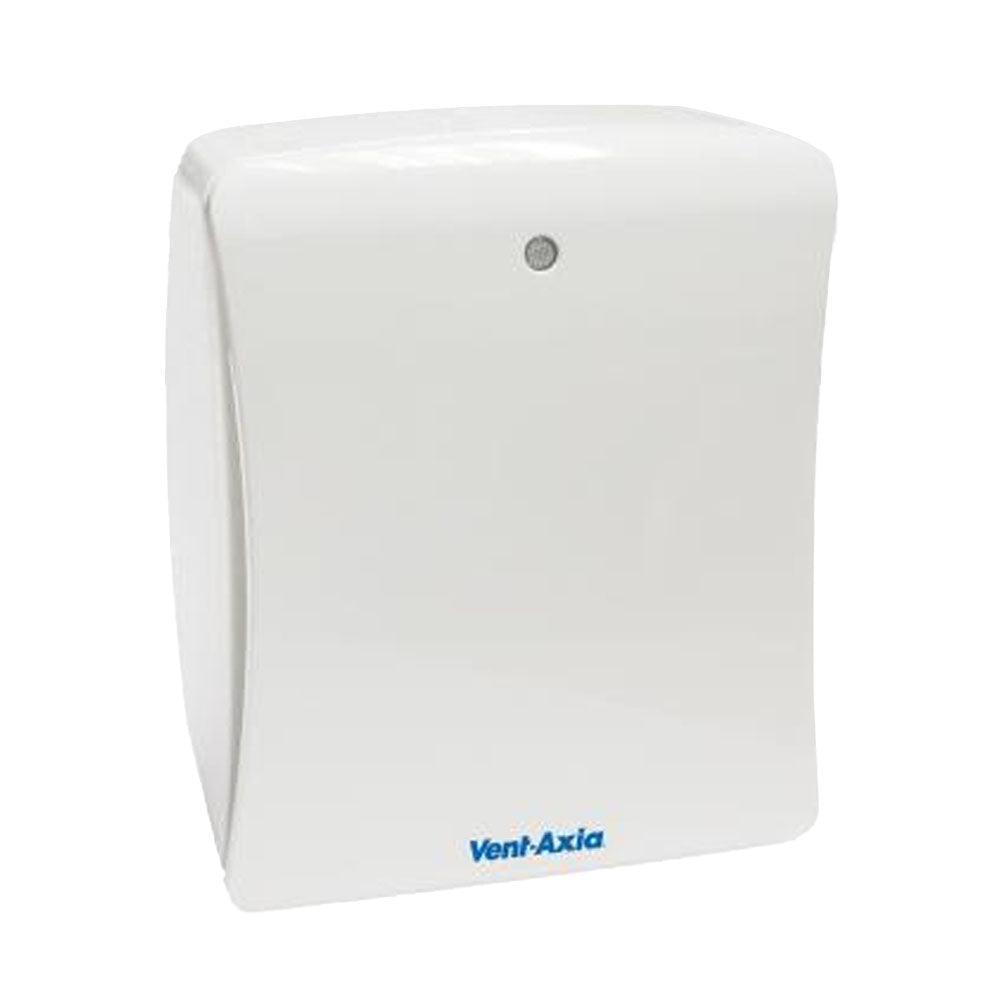

Vent Axia 427479
Filterless Centrifugal Bathroom Extractor Fan with Timer & Humidistat
Specification - Max Boost
Air Extraction m3/hr : 80m3/hr
Air Extraction L/s : 22 L/s
Noise : 34.5dB(A)
Wattage :17.1w
Specification - Min Boost
Air Extraction m3/hr : 61m3/hr
Air Extraction L/s : 17 L/s
Noise : 24dB(A)
Wattage : 10.9w
Specification - Trickle
Air Extraction m3/hr : 32m3/hr
Air Extraction L/s : 9 L/s
Noise : 11dB(A)
Wattage : 6.3w
Features
- Continuous Trickle function for fresh air in poorly or unventilated rooms.
- Up to 70% energy saving on standard SOLO range
- Extremely low sound levels
- Flush & surface Mountable with adjustable spigot
Overview
The Solo Plus range from Vent-Axia has been specially designed for through the wall and ducted applications, suitable for internal bathrooms, toilets and other small rooms. Finished in white, the Solo Plus can be flush or surface mounted, with a 100mm circular spigot for rear entry or connecting to a vertical ducting system. The spigot can also be adjusted for side ways exhaust enabling recessed ceiling installations within limited ceiling voids. The powerful centrifugal impeller allows for installations with longer duct runs up to 5m using 100mm ducting while maintaining the maximum extraction rate.
Continuous running products, such as the Solo Plus installed in all wet areas of a dwelling are classed as a wholehouse ventilation system and therefore, only needs to move the amount of air as laid down in table 1.1b of Document F.
The Solo Plus has a choice of two boost/override motor speeds set at installation, medium (17l/s) or high (22l/s), with an optional constant trickle speed (9l/s), also selectable at installation except in the P model. Depending on the model, the fan will switch from trickle (if selected) to boost (medium or high) via the pullcord/ light switch/humidity sensor/PIR.
All models can be wall, panel or ceiling mounted and can be connected to either circular, rectangular or Vent-Axia's flat ducting. Enclosure of the electrical components is manufactured from flame retardant grade material.
Minimum 3 Year Warranty on All Fans
